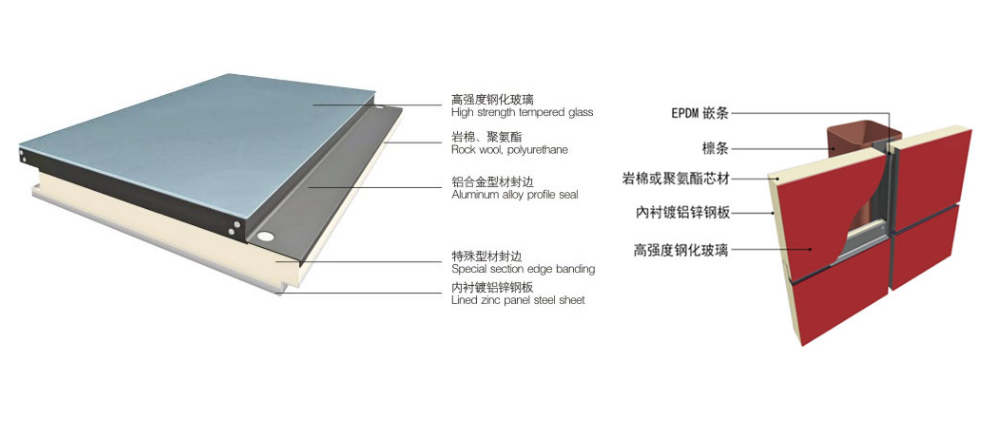

Surface material: colored tempered glass

Inner lining material: color-coated steel plate

Core material: polyurethane/rock wool

Fireproof grade: A1/B1

Panel thickness: 50/75/100mm

Scope of application: decorative exterior walls of various industrial and commercial buildings

In order to meet the new needs of imaginative architects for architectural curtain wall design, Tianfeng glass curtain wall panels combine the grandeur of glass curtain walls with the thermal insulation and energy saving of metal composite panels, organically combining multiple factors such as architectural aesthetics, building energy saving and building structure to help architects build magical buildings.

The product has multiple advantages such as thermal insulation, energy saving, fire prevention, moisture resistance and beauty. It is an epoch-making thermal insulation integrated curtain wall product.

Advantages and Features

? Durable high-strength tempered glass has rich colors on the surface, and can be customized according to customer needs. It is also pressure-resistant and allows large-span design, thereby reducing the need for support;

? High-strength tempered glass is firmly bonded to the insulation core material through AB two-component glue, and is double-bonded and fixed to the side profiles to ensure the safety and reliability of the curtain wall;

? Flexible and convenient installation and fixation, with unique insulation, heat insulation, and moisture-proof vertical node treatment;

? Can be combined with other curtain wall materials;

? Horizontal joints designed according to the principle of isobaric rain screens, combined with hidden sealants, can provide good wind and rain resistance;

? Hidden clips and fastening screws make the building facade neat, generous and beautiful;

? The factory-integrated insulation core gives the exterior wall good insulation and heat insulation performance.

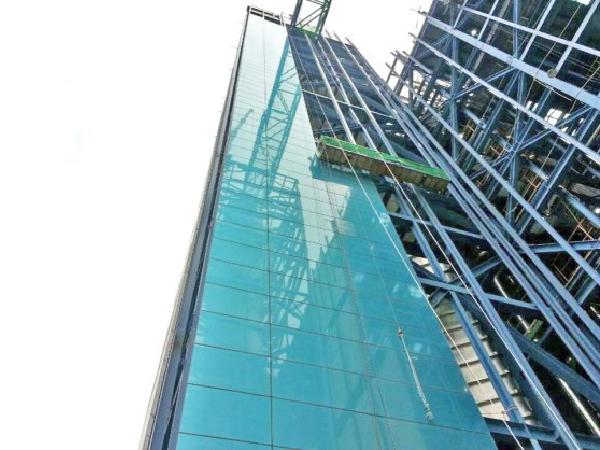

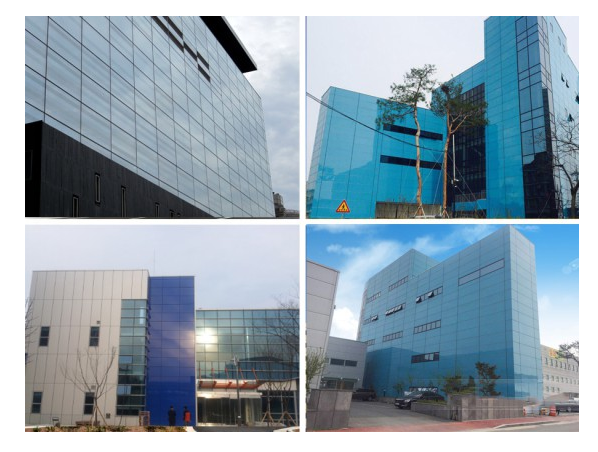

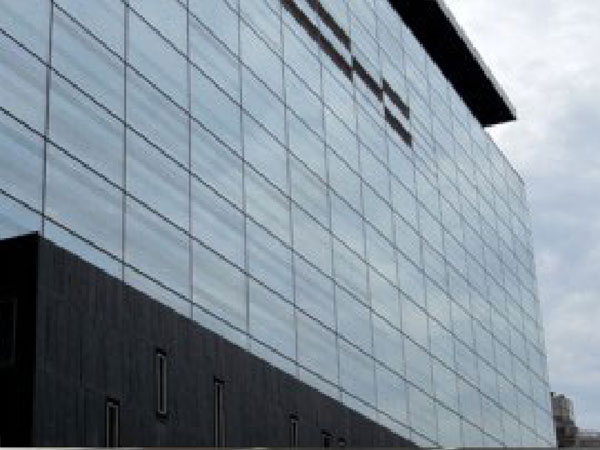

Excellent Cases
